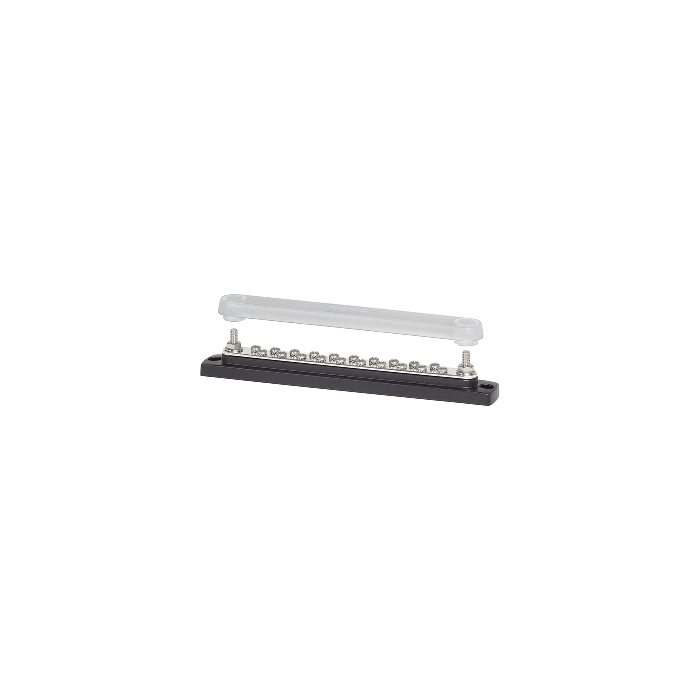

Blue Sea 2312 150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover 2312
$56.16
In stock
SKU
JMS177946
BLUE SEA 2312 BUSBAR 20 GANG COMMON BUS W/COVER
150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover
PN: 2312
PN: 2312
- Stud design provides direct terminal to bus contact for low resistant connection
- Stainless steel studs and screws allow high torquing for excellent electrical contact
- Tin-plated copper bus for maximum conductivity and resistance to corrosion
- UL 94-VO rated (self extinguishing) base material resists high heat
- Press on insulating cover attaches to studs and allows unobstructed wire access
- Raised bus provides easy access to multiple wires on a single screw
| Continuous Amperage | 130 Amperes AC 150 Amperes DC |
| Maximum Voltage Rating | 300 Volts AC 48 Volts DC |
| Bus Material | Tin-Plated Copper CDA 110/UNS11000 |
| Base Material | Glass Reinforced Polycarbonate |
| Cover Material | Polycarbonate |
| Studs | Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal |
| Screws | Stainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal |
| Weight | 0.58Lb |
| UPC Code | 632085023126 |
|---|---|
| Manufacturer Part Number | 2312 |
| Manufacturer | Blue Sea |
