Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus 5054
$133.42
In stock
SKU
JMS263654
BLUE SEA 5054 ST CLB CIRCUIT BREAKER BLOCK 12 POSITION

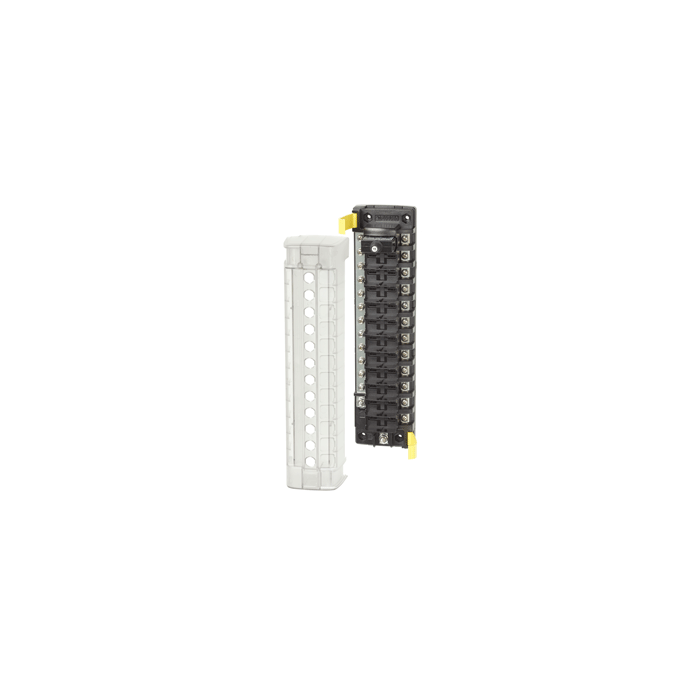

Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus
ST CLB Circuit Breaker Block - 12 Position w/Negative BusFeatures
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
Specifications:
Circuits:12
Maximum Amperage:100A (per block) 32A (per circuit)
Maximum Voltage:32V DC
Mounting:#8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source:Common SourceMinimum Operating Temperature:-10° C
Maximum Operating Temperature:60° C
Mounting Centers:10.13"(257.3 mm)
Screw Terminal Type:#8-32 Screws with Captive Star Lock Washer
Height:6.69"(169.93 mm)
Weight:1.50lb (0.68 kg)
Amperage = 100/32
Electrical | Circuit Breakers
| UPC Code | 632085050542 |
|---|---|
| Manufacturer Part Number | 5054 |
| Manufacturer | Blue Sea |
