Blue Sea 7546 C-Series Flat Rocker Circu 7546
Special Price
$54.59
Regular Price
$57.65
In stock
SKU
JMS300519
Blue Sea 7546 C-Series Flat Rocker Circu 7546

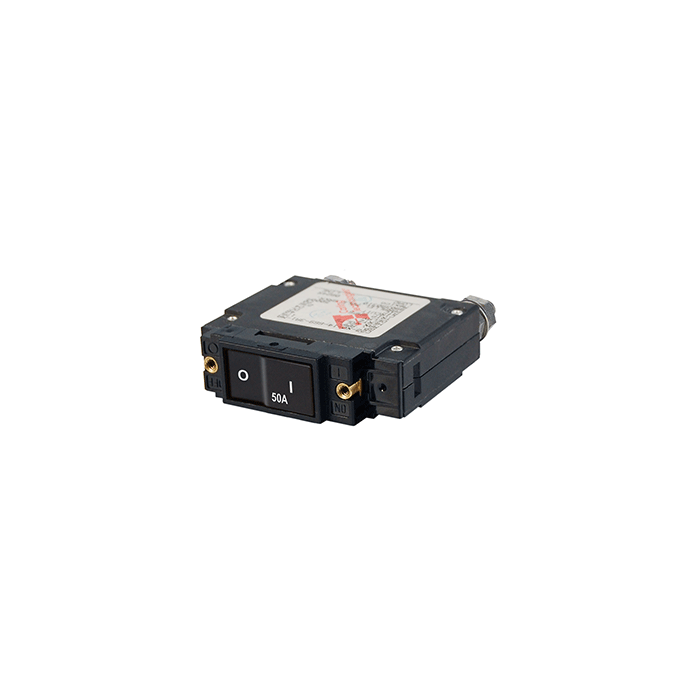

C-Series Flat Rocker Circuit Breaker - Single Pole - 50A
Features:
Specifications:
Features:
- Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
- Color actuator indicates "OFF" position
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free" - cannot be held closed after trip
- Ignition protectedsafe for installation aboard gasoline powered boats
Specifications:
- Amperage: 50A AC / 50A DC
- Actuator Style: Flat Rocker
- Poles: 1
- Maximum Voltage: 240V AC / 48V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Terminal Stud Torque: 35 in-lb (3.95 Nm)
- Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #
| UPC Code | 632085075460 |
|---|---|
| Manufacturer Part Number | 7546 |
| Manufacturer | Blue Sea |
