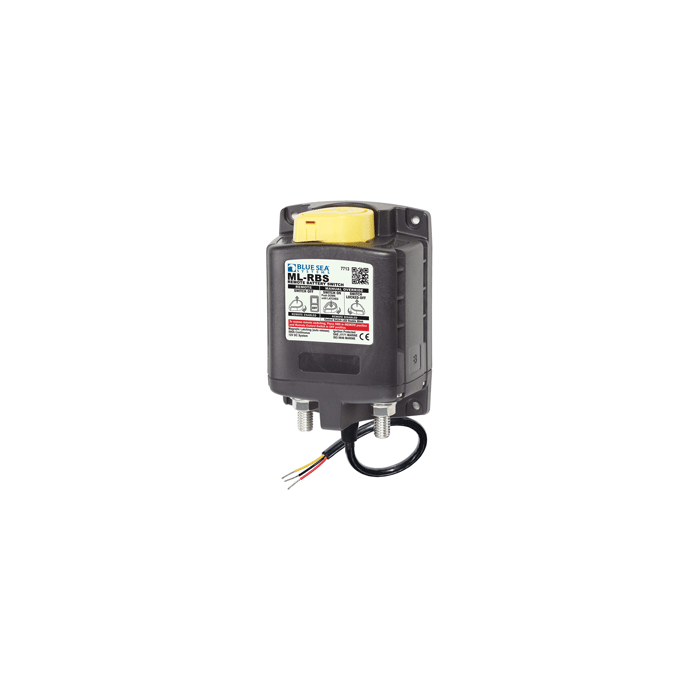

Blue Sea 7713 ML-RBS Remote Battery Switch w/Manual Control Release - 12V 7713

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing

• LED output to remotely indicate switch state - requires optional LED

• 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

• 7/ 8" (22mm) stud length accepts multiple cable terminals

• Label recesses for circuit identification

• Silver alloy contacts provide high reliability for switching live loads

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

Specifications
Control Circuit Connection:Tinned Wire
Nominal Voltage:12V DC
Coil Function: Auto releasing
Mounting:#10
Amperage Operating Current:8mA when OFF/13mA when ON
Amperage Operating Current when changing state:<7A (40 ms)
Control Circuit Voltage:10.1 to 16.5V DC
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating: 10 sec 2500A
Cranking Rating: 1 min 1100A
Minimum Operating Temperature:-10° C
Maximum Operating Temperature:50° C
Cable Size to Meet Ratings:2x (4/0)
Live Current Switching:300A @ 12V DC 10,000 Cycles
Master Control Switch Capability:Yes
Mechanical Endurance:100,000 Cycles
Switching Cycles:100,000
Terminal Ring Diameter Clearance:1.18" (29.97mm)
Terminal Stud Length:0.875" (22.23mm)
Terminal Stud Size:3/8-16 (M10)
Terminal Stud Torque:140 in-lb (15.82 Nm)
Weight:1.75lb (0.79 kg)
