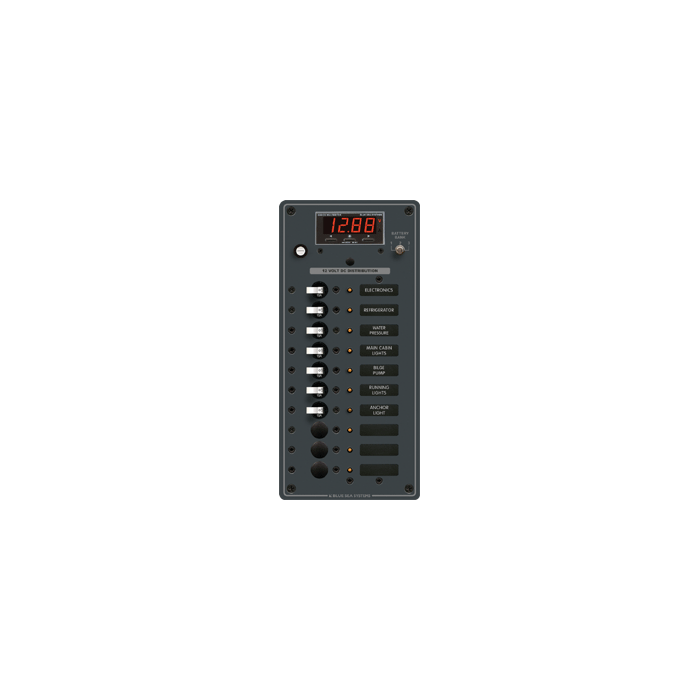

Blue Sea 8402 DC Panel 10 Position w/ Multimeter 8402
$850.64
In stock
SKU
JMS177511
BLUE SEA 8402 BREAKER PANEL DC 10 POS
Panel DC 10 Position w/ Multimeter
(7) 15A Single Pole Circuit Breaker
(1) 8248 DC Digital Multimeter w/ Alarm
- Voltage 12/24v
- Amperage 100A
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instructions and cutout template included
- Includes set of 30 common Large Format Panel Labels
- Over 500 individual labels available
| UPC Code | 632085084028 |
|---|---|
| Manufacturer Part Number | 8402 |
| Manufacturer | Blue Sea |
