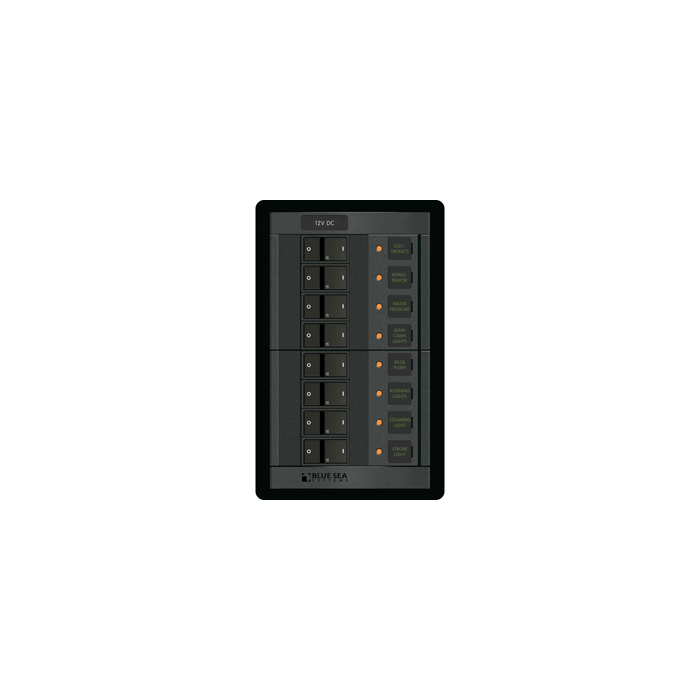

Blue Sea 1200 12V DC 8 Position - Vertical 1200
$506.10
In stock
SKU
JMS115887
Blue Sea 1200 12V DC 8 Position - Vertical
12 Volt DC 8 Position - Vertical
Features:
Specifications:
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
Features:
- 4 to 32 branch circuits with installed 15 Ampere circuit breakers
- Available with voltmeters, ammeters, and digital multimeters
- Includes 4205-Square Format Label Set
Specifications:
- Positions:8
- Nominal Voltage:12V DC
- Maximum Amperage*:100A
- Height:7.75" (196.85mm)
- Width:4.88" (123.95mm)
- Depth:3.00" (76.2mm)
- Weight:2.60lb (1.18kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
| UPC Code | 632085012007 |
|---|---|
| Manufacturer Part Number | 1200 |
| Manufacturer | Blue Sea |
