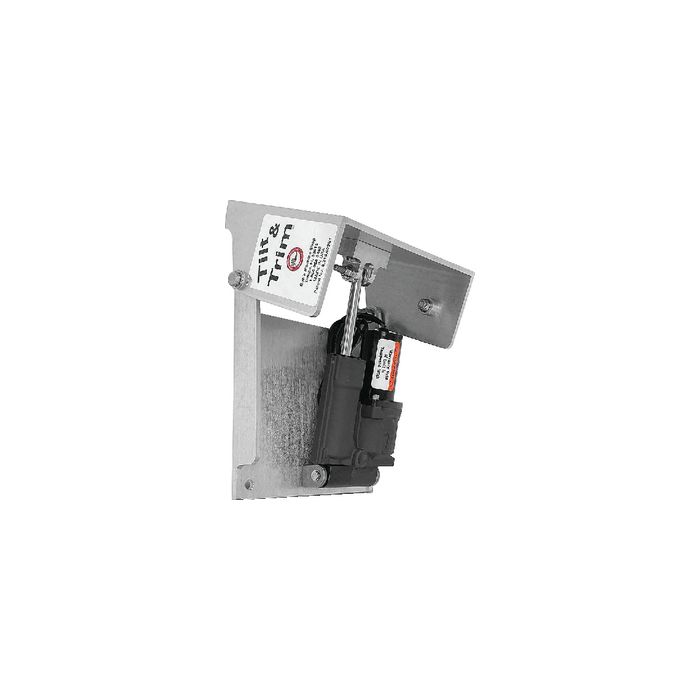

BOBS MACHINE SHOP ACTION TILT AND TRIM 1 100-701100

Bob'S Machine Shop 100701100 Action Series 30hp Clamp On Motor Tilt & Trim Action series hydraulic tilt and trim, all in one unit! For outboard owners without factory tilt and trim. Designed for motors up to 30hp (clamp on style only). This Tilt & Trim can provide increased performance, better handling and less hassle raising and lowering the motor at the launch ramp. Allows for a smoother, drier ride. When fully trimmed in, it provides a negative 3-degree tuck-under angle for faster starts and quicker on-plane times. After reaching plane, the boat can be optimized for best running angle by trimming the tilt up to its maximum of 65 degrees. A 5-1/2 inch setback is standard. Over all mounting dimensions: 10wide by 11.5length. BMS‚As Tilt & Trim is easy to install. Includes trim plate, wiring harness, relays, rocker style switch. The hydraulically operated Tilt & Trim will accommodate clamp-on motors, not standard BIA bolt pattern style. Rating 30 hp
