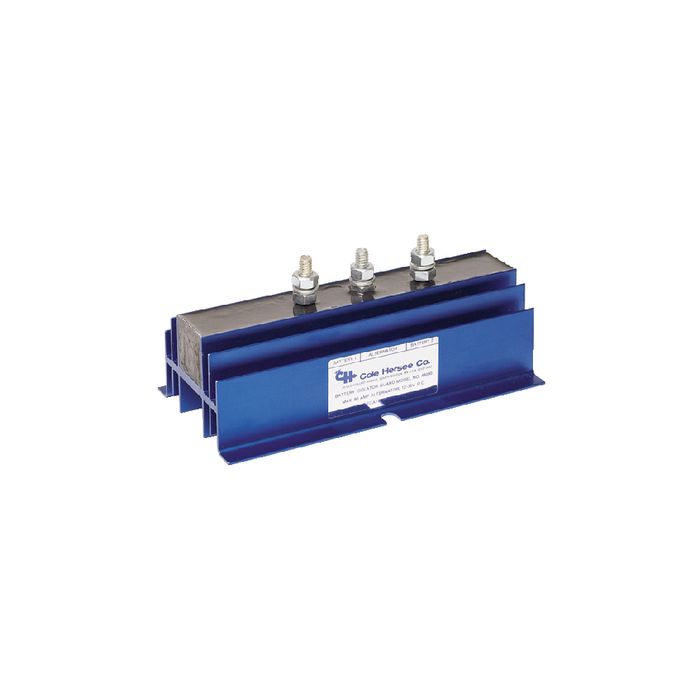

Cole Hersee Heavy Duty Battery Isolators COL-48090

Cole Hersee Heavy Duty Battery Isolators COL-48090

For 12-36 volt, DC negative ground electrical systems. Isolate each battery to prevent the battery with the higher charge from draining into the battery with the lower charge. Allow two batteries to be charged simultaneously from a single power source. 90 amp rating per leg, 2 legs. Three 1/4" Stud terminals, 6-1/2" L x 3-1/4" W x 2 13/6" H.

Amps: 90
Application: 1 Alternator/2 Batteries

SKU: COL-48090
Category: Electrical > Battery Isolators & Voltage Sensitive Relays
