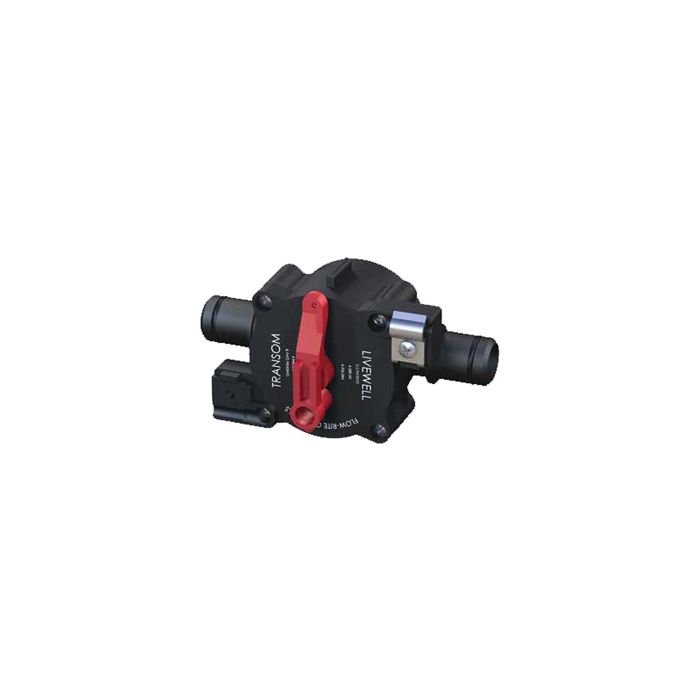

FLOW RITE CONTROL VALVE FILL/EM MPV-04-FN01

The V4 valve allows a standard aerator pump to be mounted directly to the valve body for both filling and recirculation duties, eliminating the need for 2 separate pumps and plumbing.

In the "FILL" position, the valve will close the livewell drain side of the valve so the pump has access to outside water. Once the livewell is full, the valve is placed in the "RECIRC" position to close the drain and allow full recirculation of the livewell water. Occasionally returning to the "FILL" position will keep the livewell topped off and freshened. The "EMPTY" position allows gravity draining with the pump off. Any additional fill or recirculation pump is optional and only becomes a true back-up to the main pump. Once the system is put into the "AUTO" position and the pump turned on, all livewell functions are handled. Ideal in walleye boats or other high profile boats for drain control and livewell management. Provides FILL / EMPTY / RECIRC modes.
Description Front cable approach
