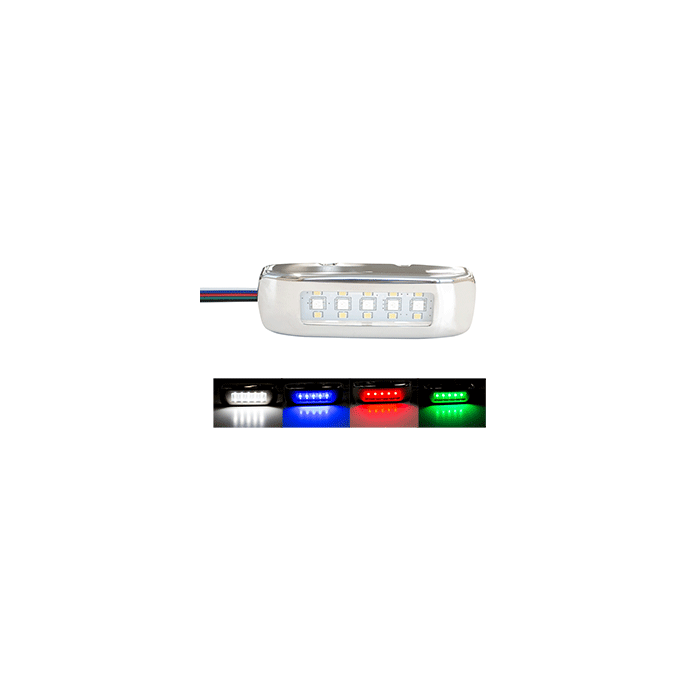

Innovative Lighting RGBW Tri-Lite w/Stainless Steel Bezel 055-43250-7

RGBW Tri-Lite w/Stainless Steel Bezel

Characteristics :

• Dimensions: 4.25” x 1.375” x 0.625”
• 10 White LEDS
• 5 RGB LEDS
• Waterproof
• Clear Lens, Polycarbonate Housing
• Available 316 Highly Polished Stainless Steel Snap-on Bezel
• Impact Resistant
• Shock and Vibration Proof

Connectors:

• 5-8” Leads
• 18 Gauge Wire
• Ground - Black
• White Light - White (+)
• Blue Light - Blue (+)
• Red Light - Red (+)
• Green Light - Green (+)

Voltage Requirements:

• Operates on 9-16 Volts DC

Current (mA):

• White - 79.7
• Red - 33.14
• Blue - 37.05
• Green- 35.94
