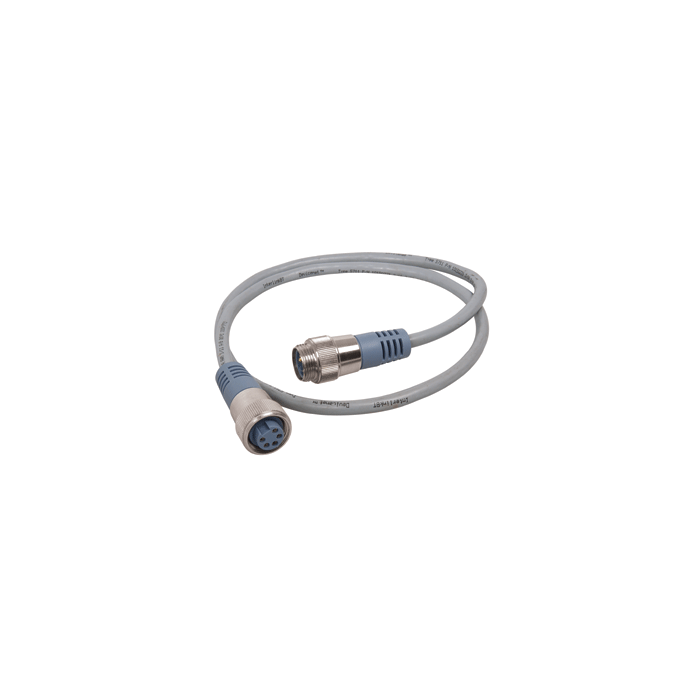

Maretron Mini Double-Ended Cordset - 1 Meter NM-NG1-NF-01.0
$44.30
In stock
SKU
JMS129041
Maretron Mini Double-Ended Cordset - 1 Meter NM-NG1-NF-01.0 is available to buy in increments of 1
MARETRON MINI DOUBLE - ENDED CORDSET - 1 METER
Mechanical
Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 1.06"
Electrical
Current Rating: 9.0 Amps
Voltage Rating: 300 V
Cable
Outer Jacket Mat/Color: PVC/Blue
Conductor Insulation Material: PE (data pair), PVC (power pair)
Number of Conductors: 2x15 AWG, 2x18 AWG, 18 AWG Drain Wire
Shielding (3-Levels): Braid (Overall), Foil (Power Pair),
Foil (Data Pair)
Environmental
Protection Class: IEC IP67, NEMA 1,3,4,6P
Temperature Rating: -40 deg C to 80 deg C (-40 deg F to 176 deg F)
Approval
(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
NMEA: NMEA 2000 Approved
Electrical
Cable
Environmental
Approval
| UPC Code | 873804002040 |
|---|---|
| Manufacturer Part Number | NM-NG1-NF-01.0 |
| Manufacturer | Maretron |
