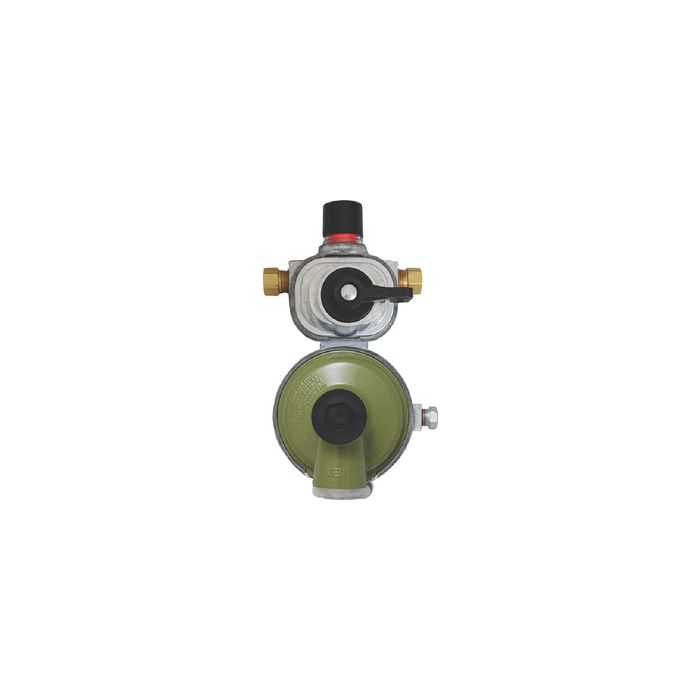

Marshal Excelsior Excela-Flo Auto Reg H.C. Pk MEC MEGR253HP

Marshal Excelsior Excela-Flo Auto Reg H.C. Pk

The Automatic Changeover Regulator automatically redirects LP gas vapor flow from an empty service cylinder to a reserve cylinder, without interruption of service. It features an easy to read green indicator which changes to red when the service cylinder needs to be refilled. Meets UL, RVIA and NFPA requirements.

• Type: Two Stage


• Max Inlet Pressure: 250 PSI


• Inlet Connection: 1/4" Female Inverted Flare


• Outlet Connection: 3/8" FNPT


• Exterior Finish: Raw Zinc / Powder Coat


• Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal


• Diaphragm Type: Internal Relief - Spring Loaded


• Bonnet/ Body Material: Die Cast Zinc


• Listings: UL LISTED / UL 144


• Mounting Holes: 3-1/2" On Center


• Pressure Taps: 1/8" FNPT Plugged

Description: High Capacity
Pkg.: Clamshell

SKU: MEC MEGR253HP 277-MEGR253HP
Manufacturer Part Number: MEGR-253HP
Category: RV Appliances / LPG Regulators
