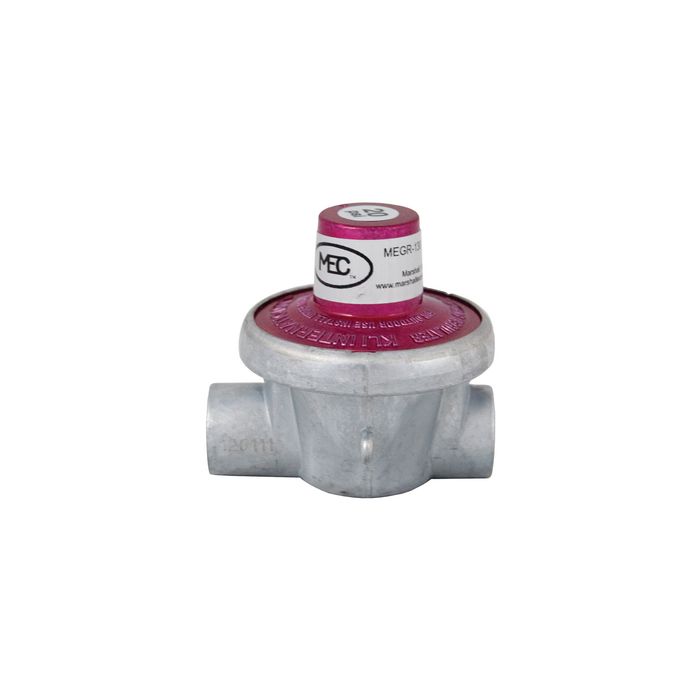

Marshal Excelsior Excela-Flo Hp Reg.30Psi Pkg. 277-MEGR13030P

Marshal Excelsior Excela-Flo Hp Reg.30Psi Pkg.

The MEGR-130 series fixed high pressure single stage regulators are designed to provide an economical solution for pounds to pounds service applications. The MEGR-130 can be used to regulate air as well as LP gas. Regulators must be installed in compliance with federal, state or local codes or laws in accordance with NFPA 58.

• Max. Inlet Pressure: 250 PSIG (17,2 bar)


• Inlet Connection: 1/4" FNPT


• Outlet Connection: 1/4""NPT


• Orifice Diameter: 0.0625"


• Exterior Finish: Red Anodized


• Diaphragm: Fabric Reinforced Buna N


• Bonnet/Body Material: Die Cast Zinc


• BTU / H Capacity: 1,200,000 BTU/H @ 40 PSI


• Listings: UL LISTED / UL 144

Description: 30 PSI
Pkg.: Clamshell

SKU: 277-MEGR13030P 277-MEGR13030P
Manufacturer Part Number: MEGR-130-30P
Category: RV Appliances / LPG Regulators
