Marshall Excelsior Hicap Hi Press Adjustable Regular 0-30Psi MEC MEGR612030

Marshall Excelsior Hicap Hi Press Adjustable Regular 0-30Psi MEC MEGR612030

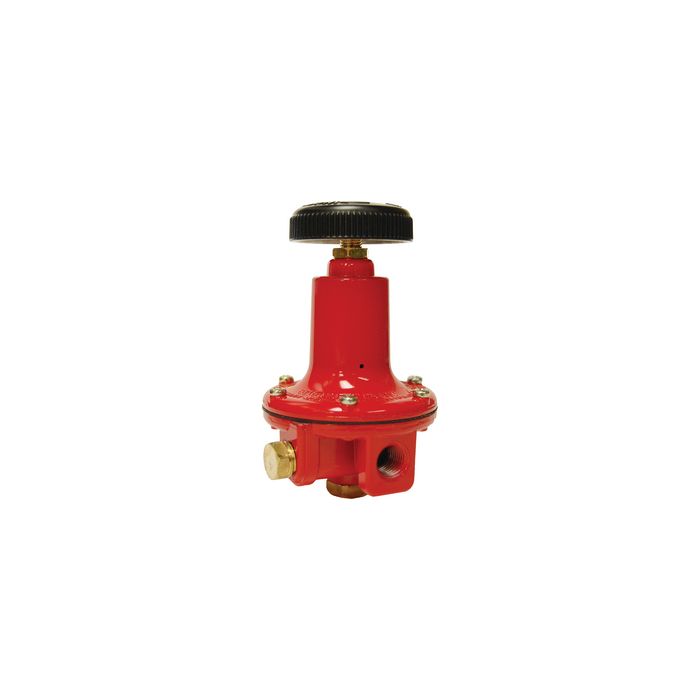

The MEGR-6120 Series are UL listed high-pressure regulators that meet a variety of applications for liquid or vapor service. The compact body design makes these regulators particularly useful in installations with space limitations. The basic MEGR-6120 Series regulators come equipped with a handwheel adjustment. The MEGR-6120 & MEGR-6121 Series are UL listed as high pressure, non-relief regulators. Both MEGR-6120 & MEGR-6121 Series regulators contain brass materials that are not compatible with anhydrous ammonia service.

• Max. Inlet Pressure: 250 PSI (17, 2 bar)


• Inlet Connection: 1/4" FNPT


• Outlet Connection: 1/4" FNPT


• Gauge Port: 1/4" FNPT


• Exterior Finish: Red Wet Coat


• Diaphragm: Fabric Reinforced Buna N


• Body / Bonnet Material: Die Cast Aluminum


• Liquid Capacity: 3-5 GPH


• Listings: UL LISTED / UL 144

Description: Adjustable Reg 1-30 PSI - 1/4" FNPT Inlet/Outlet

SKU: MEC MEGR612030
Manufacturer Part Number: MEGR-6120-30
Product Category: RV Appliances>LPG Regulators
