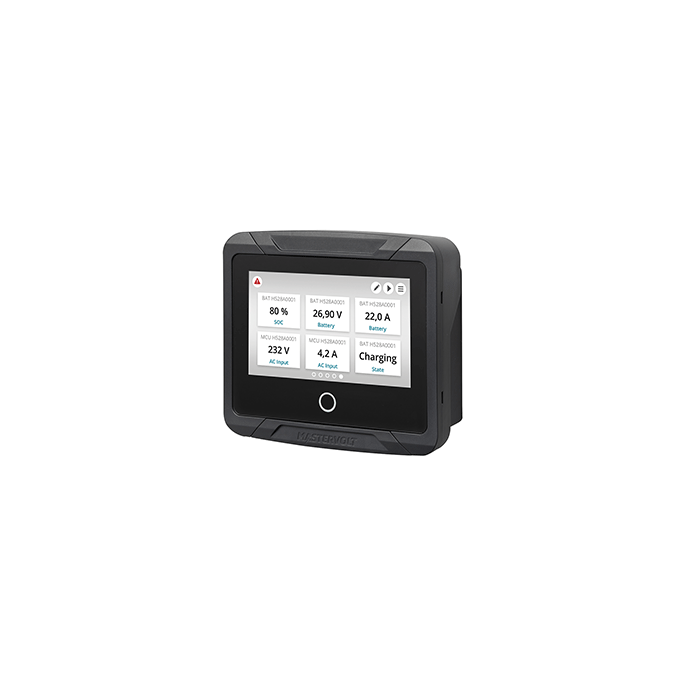

Mastervolt EasyView 5 Touch Screen Monitoring and Control Panel 77010310

EasyView 5

Waterproof system monitor with daylight display and intuitive touch control.

Controlling your Mastervolt system has never been easier. The EasyView 5 features a sharp, waterproof display which is clearly readable in daylight. Thanks to the color touch screen and multi-language menu, the display is a pleasure to operate. Easily customizable favorite pages show all relevant system information at a glance.

Features

• Water proof, daylight readable color display
• Intuitive touch control
• Customizable favorite pages
• Log book for warnings and alarms
• Buzzer and Home button
• Easy mounting: Front mount, wall mount or retrofit
• MasterBus powered or MasterBus powering by 12 V DC input
• Easy updating through integrated USB

Applications

The EasyView 5 completes any MasterBus system. Applications include yachts, vehicles and stationary systems. Markets include marine, mobile (recreational & professional), infra-structure, offshore, off-grid and industrial markets.

Specifications

• Display: 4.5 inch high contrast display with capacitive touch control. Resolution: 480x272 pixels, Color depth: 16 bits
• Languages: English, Dutch, German, Spanish, Italian, French, Finnish, Swedish, Norwegian, Danish
• IP degree: IP65 waterproof front
• Power supply: MasterBus powered or MasterBus powering through 12/24 V input
• Power Consumption: < 160 mW (idle mode)
• Alarm: Buzzer integrated
• Connections: 2 x MasterBus, USB, 12/24 V auto ranging input for optional external power
• Mounting: Front mount, wall mount and MasterView Easy retrofit
• Dimensions, HxWxD: 113 x 127 x 43 mm
