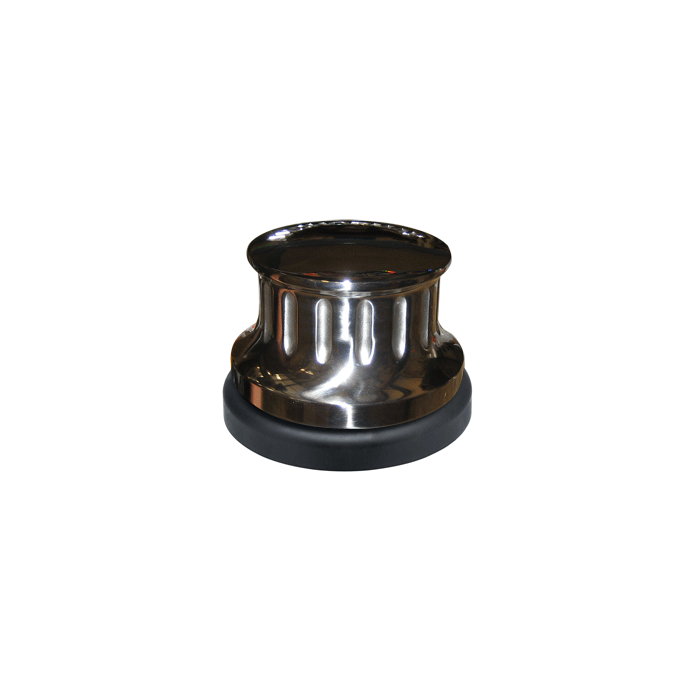

Maxwell Anchor Max Windlass P9510005
$1,297.00
In stock
SKU
JMS129480
Maxwell Anchor Max Windlass P9510005 is available to buy in increments of 1
MAXWELL ANCHORMAX WINDLASS
ANCHORMAX™
FEATURES
Note: Each winch is supplied as a single direction (clockwise) fully tested unit complete with fitting instructions, deck switch, templates and fastenings.
STANDARD EQUIPMENT
FEATURES
- Extremely high power to weight ratio
- Compact, fully sealed gearbox
- Vertically mounted, high efficiency, permanent magnet motor
- Manufactured in durable anodised marine grade aluminum with chrome manganese bronze top parts
- Precision cut gears
- Minimal Intrusion below decks
- Easy installation - no dismantling of the winch is necessary
- Ideal for boats from 5 to 10 metres
Note: Each winch is supplied as a single direction (clockwise) fully tested unit complete with fitting instructions, deck switch, templates and fastenings.
STANDARD EQUIPMENT
- Footswitch
| SPECIFICATIONS | |
| Maximum Line Pull | 386kg (850lb) |
| Speed @ nominal working load | 24m/min (76ft per min) (80 amps with 100kg/220lb load) |
| Voltage | 12v |
| Power | 600w |
| Weight | 8kg(17.6lb) |
| Maximum Boat Load | 10m (33ft) |
| Max. Boat Weight | 4 Tons |
| UPC Code | 9414761059176 |
|---|---|
| Manufacturer Part Number | ANCHORMAX |
| Manufacturer | Maxwell |
