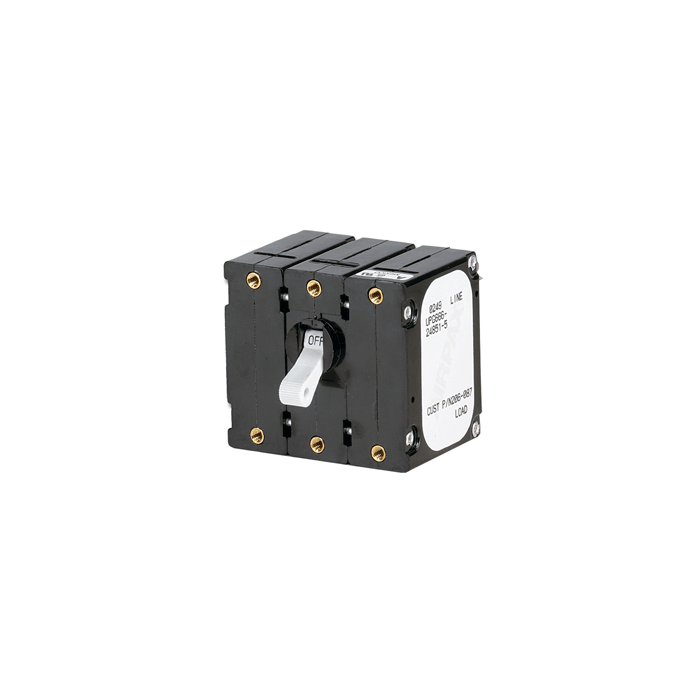

Paneltronics Breaker 30 Amps w/ Reverse Polarity Trip Coil - White 206-087
$65.55
In stock
SKU
JMS134769
Paneltronics Breaker 30 Amps w/ Reverse Polarity Trip Coil - White 206-087 is available to buy in increments of 1
PANELTRONICS BREAKER 30 AMPS W/ REVERSE POLARITY TRIP COIL
Shore Main Circuit Breakers and Reverse Polarity Trip Coil
- Amperage: 30 amps
- Poles: Triple Pole
- Shore main AC circuit breaker for Paneltronics electrical distribution panels.
120VAC 60Hz (simultaneously breaks both hot and neutral legs)
220VAC 50Hz (simultaneously breaks both live and neutral legs) - Reverse Polarity Protector 65VAC trip coil (Surge arrestor P/N 281-001 required) (ABYC E-11.6.3.3.1)
- Smart Breaker: Trips automatically upon sensing reverse polarity.
| UPC Code | 602290204009 |
|---|---|
| Manufacturer Part Number | 206-087 |
| Manufacturer | Paneltronics |
