Paneltronics Switch SPST Black Off/(On) Waterproof Rocker 004-178
$11.28
In stock
SKU
JMS134728
Paneltronics Switch SPST Black Off/(On) Waterproof Rocker 004-178 is available to buy in increments of 1

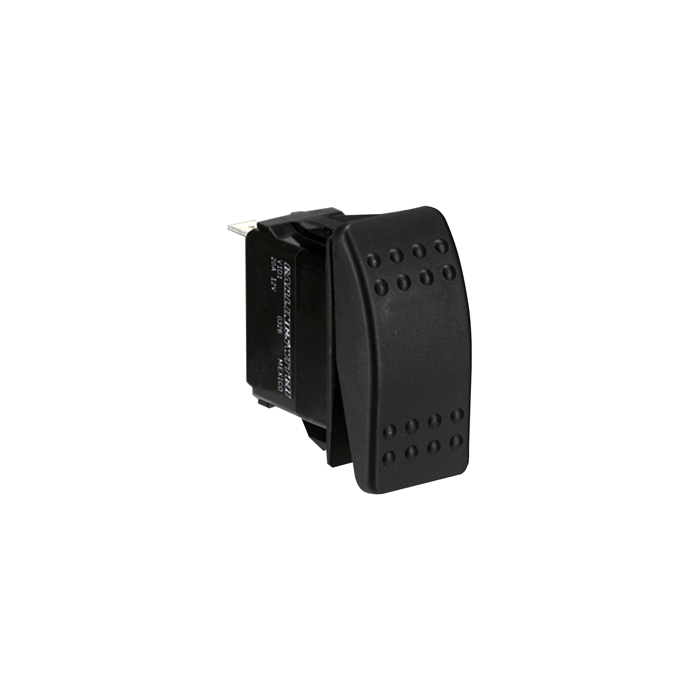

PANELTRONICS SWITCH SPST BLACK OFF/(ON) WATERPROOF ROCKER
Rocker Switch (Waterproof Contura)
- Single or double pole, and maintaining or momentary configurations are available
- Sealed IP68 rated per IEC 529
- Ignition protection construction meets requirements of UL 1500 and ISO 8846
- Black textured actuators (Hard Surface with Bumps)
- Red incandescent 12VDC 80mA Status Indicators
- Contacts are rated at 12VDC 20A, 24VDC 15A (ABYC E-11.12.1.1)
- DC moisture resistant Per Mil-Std 202F, Method 107F
- Optional rubber gaskets provide a watertight panel seal meets IP67 (P/N 004-176)
- 1/4" male tab terminals are standard without barries (ABYC E-11-14.5.4 Exception)
- Hole plug Black (P/N 001-295)
| UPC Code | 602290100202 |
|---|---|
| Manufacturer Part Number | 004-178 |
| Manufacturer | Paneltronics |
