Scanstrut SC50 Satcom Base Mount Adjustable Wedge SC50
$439.00
In stock
SKU
JMS141196
Scanstrut SC50 Satcom Base Mount Adjustable Wedge SC50 is available to buy in increments of 1
SCANSTRUT SATCOM BASE MOUNT ADJUSTABLE WEDGE FOR SC31
Product Code SC50
Two counter rotating angled discs compensate for slopes on radar arches and cabin roofs. Provides a horizontal mounting surface for satcom domes on any slope angled from 0 12 degrees.
Use only in conjunction with the Scanstrut SC45 and SC65 satcom adaptor ranges.

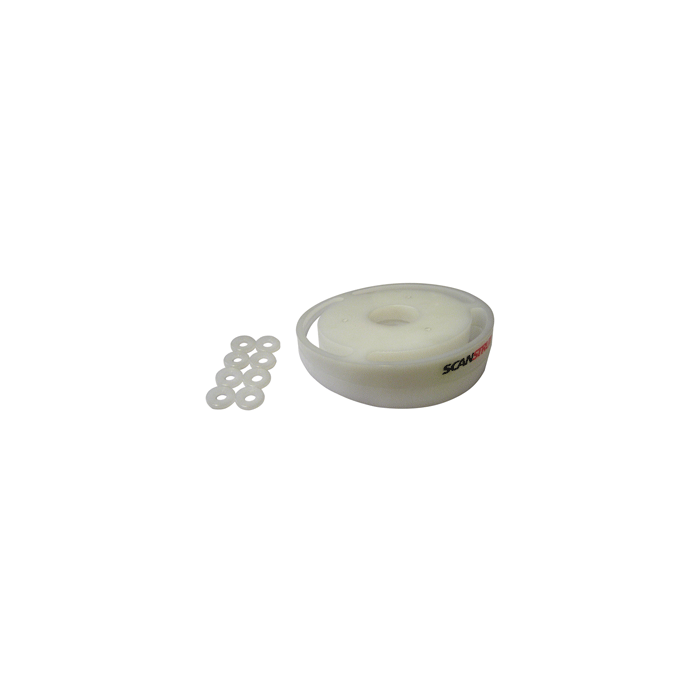

Supplied complete with watertight deck seal. Also four pairs of 6° angled washers to enable perpendicular fastening through SC50 on any slope from 0 -12 degrees.
Target Market
Power boats requiring level installation of satcom domes.
Technical information
Materials Discs and washers machined from white King Starboard®, a marine grade polymer. Expanded polyethylene base seal.
Size 200mm/7.8" diameter
Satcom compatibility Suitable for use with Scanstrut SC45 and SC65 adaptor plates, allowing installation of KVH G4 and G6 domes and Simrad TV 45 and TV 65 domes.
Two counter rotating angled discs compensate for slopes on radar arches and cabin roofs. Provides a horizontal mounting surface for satcom domes on any slope angled from 0 12 degrees.
Use only in conjunction with the Scanstrut SC45 and SC65 satcom adaptor ranges.
Supplied complete with watertight deck seal. Also four pairs of 6° angled washers to enable perpendicular fastening through SC50 on any slope from 0 -12 degrees.
Target Market
Power boats requiring level installation of satcom domes.
Technical information
Materials Discs and washers machined from white King Starboard®, a marine grade polymer. Expanded polyethylene base seal.
Size 200mm/7.8" diameter
Satcom compatibility Suitable for use with Scanstrut SC45 and SC65 adaptor plates, allowing installation of KVH G4 and G6 domes and Simrad TV 45 and TV 65 domes.
| UPC Code | 5060114790506 |
|---|---|
| Manufacturer Part Number | SC50 |
| Manufacturer | Scanstrut |
