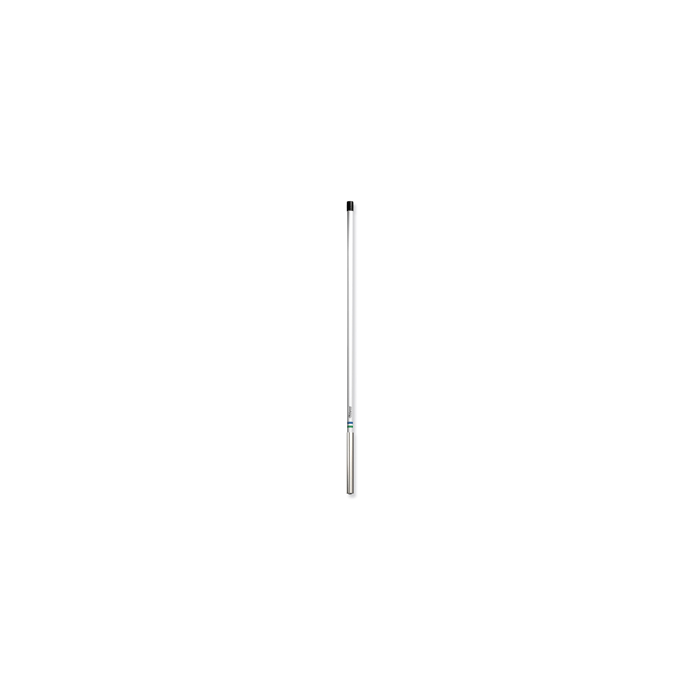

Shakespeare 396-1-AIS Broadband VHF for AIS System 396-1-AIS
$209.99
In stock
SKU
JMS175736
SHAKESPEARE VHF 4FT 396-1-AIS 3DB
Shakespeare Style 396-1-AIS VHF Marine AIS
4' LENGTH 3dB
4' MAST MOUNT AIS ANTENNA
The 396-1-AIS has been specially designed to meet the broader bandwidth requirements of all popular AIS transceivers. Commercial-grade construction with a mast mounting sleeve.
Technical Specifications:
4' LENGTH 3dB
4' MAST MOUNT AIS ANTENNA
The 396-1-AIS has been specially designed to meet the broader bandwidth requirements of all popular AIS transceivers. Commercial-grade construction with a mast mounting sleeve.
- Brass and copper elements
- SO-239 connector at the base
- Suggested Mount: U-Bolts included. Can be strapped to a larger mast using steel banding (not supplied)
- One section
- Coax cable sold separately
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
- Frequency: VHF Marine Band
- Bandwidth within 2.0:1 SWR: 6.0 MHz
- SWR: 1.5:1 at 156.8 MHz
- Gain: 3dB
- Impedance (Ohms): 50
- Gain: 3dB
- Max. Input (Watts): 100
- DC Ground: no (will read open-circuit with ohmeter test)
- Termination: SO-239 at bottom of antenna
- Height (feet): 4
- Polarization: Vertical
- Radiation pattern: Omni-directional
| UPC Code | 719441170585 |
|---|---|
| Manufacturer Part Number | 396-1-AIS |
| Manufacturer | Shakespeare |
