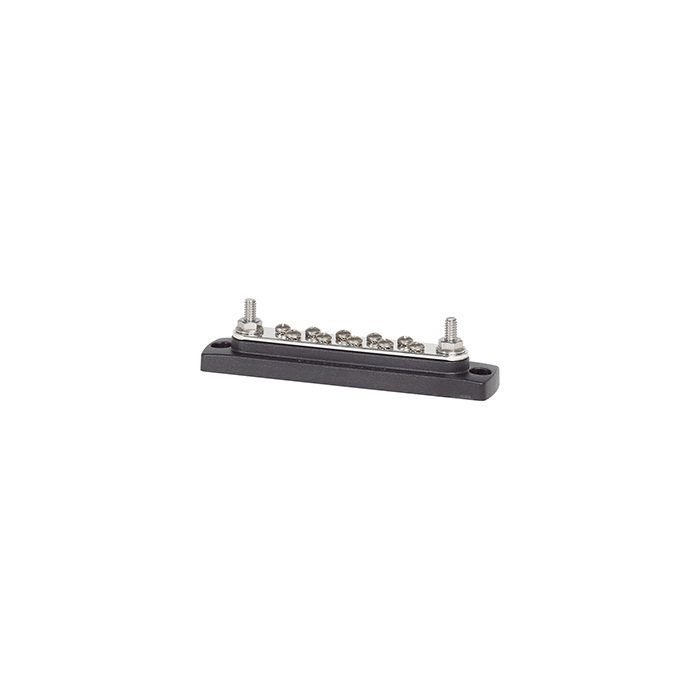

Blue Sea 2301 150 Ampere Common BusBar 10 x #8-32 Screw Terminal 2301
$30.16
In stock
SKU
JMS176893
BLUE SEA 2301 BUSBAR 10 GANG COMMON BUS
150 Ampere Common BusBar 10 x #8-32 Screw Terminal
PN: 2301
PN: 2301
- Stud design provides direct terminal to bus contact for low resistant connection
- Stainless steel studs and screws allow high torquing for excellent electrical contact
- Tin-plated copper bus for maximum conductivity and resistance to corrosion
- UL 94-VO rated (self extinguishing) base material resists high heat
- Raised bus provides easy access to multiple wires on a single screw
- UL 94-VO rated base material resists high heat
- Captive star type lock washers for anti-rotation and eliminate handling of small, easily dropped parts
| Continuous Amperage | 130 Amperes AC 150 Amperes DC |
| Maximum Voltage Rating | 300 Volts AC 48 Volts DC |
| Bus Material | Tin-Plated Copper CDA 110/UNS11000 |
| Base Material | Glass Reinforced Polycarbonate |
| Cover material | Polycarbonate |
| Studs | Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal |
| Screws | Stainless Steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal |
| Weight | 0.28Lb |
| UPC Code | 632085023010 |
|---|---|
| Manufacturer Part Number | 2301 |
| Manufacturer | Blue Sea |
