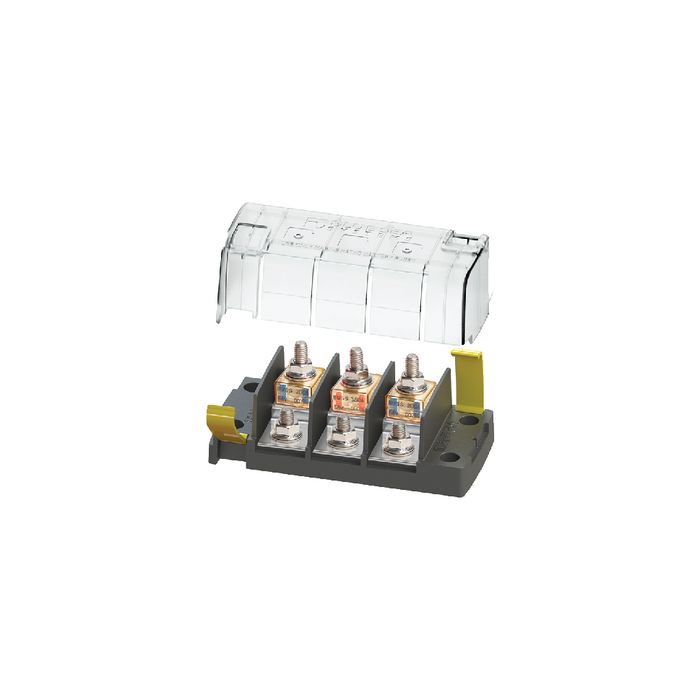

Blue Sea Systems FUSE BLOCK MRBF 3CIRC IND BLU-5194

Blue Sea Systems Fuse Block Mrbf 3Circ Ind
Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
The independent source fuse block (5194) is ideal for 3 output battery chargers
The common source fuse block (5196) provides 3 loads from a single source
Clip-on cover insulates terminal connections
Versatile wiring options allow all wires to come out a single side
Label recesses for easy circuit identification
One-piece stainless flange nuts ensure safe and secure connections
Ignition protected when used with MRBF fuses
Fuses sold separately
Specifications:
Voltage Max. Operating: 58V DC
Amperage Max. Operating: 240A per circuit
Terminal Fuses Available: 30-300 Amps
Description:Independent Source
Fuse:3
Stud:M8 (5/16"-18)
