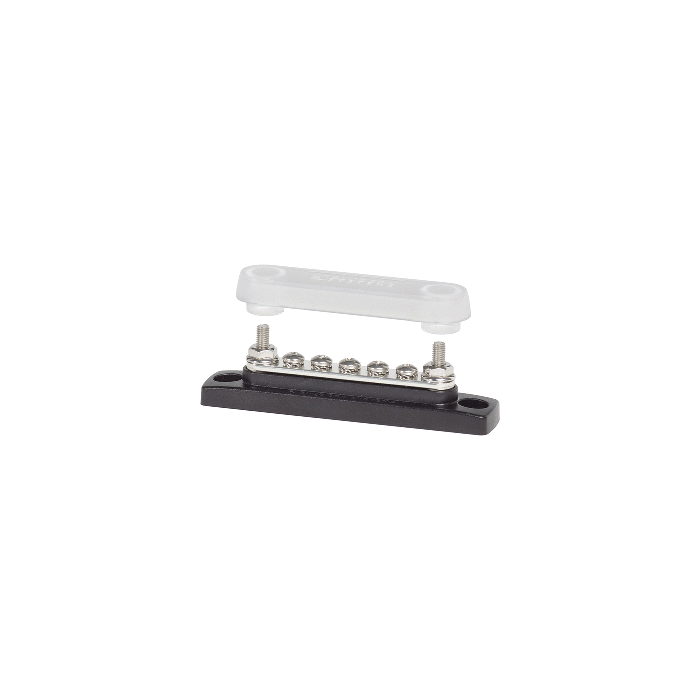

Blue Sea 2314 MiniBus 100 Ampere Common BusBar 5 x 8-32 Screw Terminal with Cover 2314
$26.63
In stock
SKU
JMS115985
Blue Sea 2314 MiniBus 100 Ampere Common BusBar 5 x 8-32 Screw Terminal with Cover 2314 is available to buy in increments of 1
BLUE SEA 2314 MINIBUS 5 X 8-32 COMMON BUS W/COVER
MiniBus 100 Ampere Common BusBar 5 x 8-32 Screw Terminal with Cover
PN: 2314
PN: 2314
- Great for limited space applications in electronics cabinets and under dashboards
- Snap on insulating cover attaches to studs and allows unobstructed wire access
- Raised bus provides easy access to multiple wires on a single screw
- Pressed on busbar eliminates the need for securing nut
- Stainless steel studs allow high torquing for excellent electrical contact
- Tin-plated copper bus for maximum conductivity and corrosion resistance
- Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
- Captive star type lock washers meet CE requirements for anti-rotation and eliminate handling of small, easily dropped parts
- Stainless steel phillips screws for easier installation and resistance to stripping
- UL 94-VO rated base material resists high heat
| Continuous Amperage | 130 Amperes AC/DC |
| Maximum Voltage Rating | 300 Volts AC/48 Volts DC |
| Bus Material | Tin-Plated Copper CDA 110/UNS11000 |
| Base Material | Reinforced Polycarbonate |
| Cover Material | Clear Polycarbonate |
| Weight | 0.17Lb |
| UPC Code | 632085023140 |
|---|---|
| Manufacturer Part Number | 2314 |
| Manufacturer | Blue Sea |
