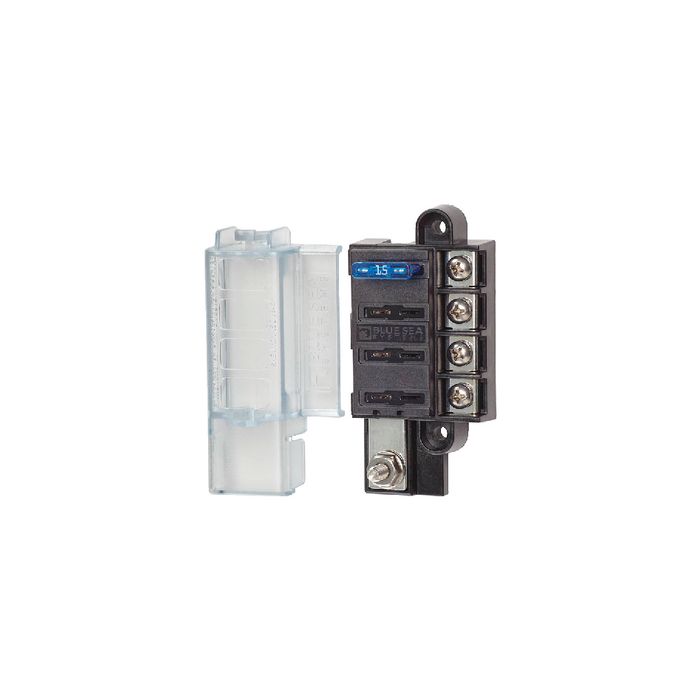

Blue Sea Systems FUSE BLOCK STBLADE 4CIRC W/CVR BLU-5045

Blue Sea Systems Fuse Block Stblade 4Circ W/Cvr
Compact common source fuse block
Accepts ATO® and ATC® fast acting blade fuses
Single side entry wiring
Ignition Protected - for use in a gasoline engine compartment
Insulating cover meets ABYC/USCG insulation requirements
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Small format standard and custom labels available
Fuses sold separately
Specifications:
Voltage Max. Operating: 32V DC
Amperage Max. Operating: 30A per circuit
Amperage Max. Operating: 100A per block
Fuse Type: ATO® or ATC® Fuses
Screw Terminal: #8-32 Screws with captive star lock washer
Mounting: #8 Screw (M4)
Description:4 Circuit with Cover
